| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F54T5/HO | 2 | 54 | 50/10 | 120 | 1.07 | 128 | 10 | 0.98 | 1.7 | 1.00 | 0.78 |
| F54T5/HO | 2 | 54 | 50/10 | 277 | 0.44 | 122 | 10 | 0.98 | 1.7 | 1.00 | 0.82 |
| F54T5/HO | 2 | 54 | 50/10 | 120 | 0.53 | 64 | 10 | 0.98 | 1.7 | 0.40 | 0.62 |
| F54T5/HO | 2 | 54 | 50/10 | 277 | 0.22 | 62 | 10 | 0.98 | 1.7 | 0.40 | 0.64 |
| F54T5/HO | 2 | 54 | 50/10 | 120 | 0.24 | 29 | 10 | 0.98 | 1.7 | 0.10 | 0.35 |
| F54T5/HO | 2 | 54 | 50/10 | 277 | 0.10 | 28 | 10 | 0.95 | 1.7 | 0.10 | 0.36 |

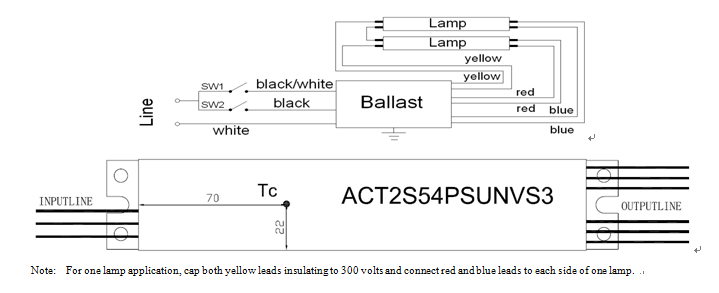

ACT2S54PSUNVS3
-
-
• Line Voltage:120-277V 50/60Hz
• Program Start
• Series Lamp Operation
• Active Power Factor Correction
• Lamp End of Life Protection
|
 |
||||||||||||||||||||||||||||||||||||
