| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F32T8 | 2 | 32 | 41/5 | 277 | 0.27 | 74 | 10 | 0.97 | 1.7 | 1.18 | 1.59 |
| F32T8 | 2 | 32 | 41/5 | 120 | 0.636 | 76 | 10 | 0.98 | 1.7 | 1.18 | 1.55 |
| F32T8 | 2 | 32 | 41/5 | 277 | 0.140 | 37 | 10 | 0.97 | 1.7 | 0.40 | 1.08 |
| F32T8 | 2 | 32 | 41/5 | 120 | 0.310 | 37 | 10 | 0.98 | 1.7 | 0.40 | 1.08 |
| F32T8 | 1 | 32 | 41/5 | 277 | 0.155 | 42 | 10 | 0.97 | 1.7 | 1.38 | 1.70 |
| F32T8 | 1 | 32 | 41/5 | 120 | 0.352 | 42 | 10 | 0.98 | 1.7 | 1.38 | 3.28 |
| F32T8 | 1 | 32 | 41/5 | 277 | 0.155 | 19 | 15 | 0.90 | 1.7 | 0.43 | 2.26 |
| F32T8 | 1 | 32 | 41/5 | 120 | 0.071 | 19 | 15 | 0.90 | 1.7 | 0.43 | 2.26 |

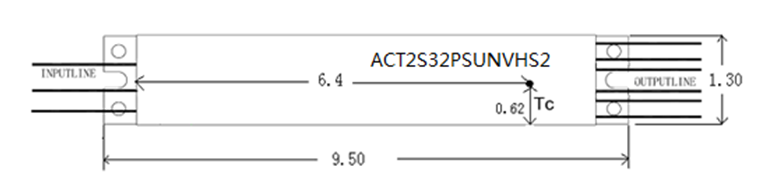

ACT2S32PSUNVHS2
-
-
• Line Voltage:120-277V 50/60Hz
• Program Rapid Start
• Series Lamp Operation
• Active Power Factor Correction
• bi-level D
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
