Shanghai Arcata Electronic Inc.

ACT1S18RS120N

  • •Line Voltage: 120V 60Hz
    •Rapid Start
    •Series Lamp Operation
    •Lamp End of Life Protection

Lamp Type Lamp No. Watts Min.Start Temp.(F/C) Vin(V) Iin(A) Pin(W) ATHD≤% PF≥ CF≤ BF BEF
CFQ18W/G24q-2 1 18 0/-18 120 0.28 18 140 0.50 1.7 0.88 4.9


Performance

Safety

·Meets ANSI Standard C62.41-2002

·No PCB’s, Type HL

·Meets FCC 18 CONSUMER Limits

·UL & cUL listed (Class P, Type 1 Outdoor)



·OCV 300V





Application

Physical Parameters

·Max. Ambient Temp. around ballast :  131,55

·Length

3.9″ (98mm)

·Sound Rated:      A

·Width

2.0″ (51mm)

·Maximum case temperature Tc167, 75

·Height

1.2″ (30mm)

·Starting time:  0.5s < t <1s

·Weight

0.4 lbs

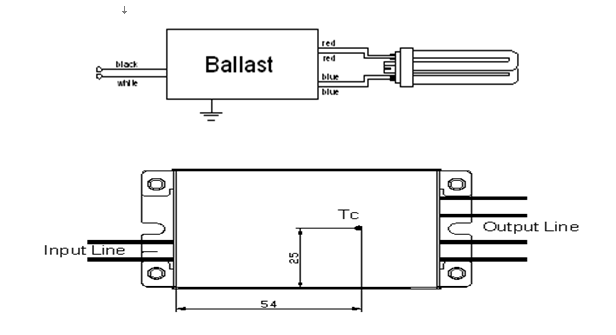

Lead Length





·White/Black

12 ″± 1″





·Red/Blue

7 ″± 1″
