Shanghai Arcata Electronic Inc.

Performance

Safety

·Meets ANSI Standard C62.41-2002

·No PCB’s

·Meets FCC 18 CONSUMER Limits

·UL & cUL listed (Class P, Type 1 Outdoor)

·OCV 300V

·TYPE CC

Application

Physical Parameters

·Maximum Ambient Temperature:  131℉,55℃

·Length

3.9″ (98mm)

·Sound Rated:      A

·Width

2.0″ (51mm)

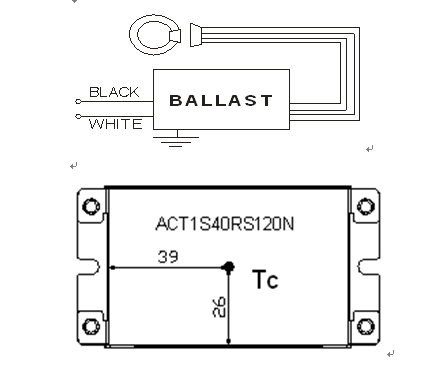

·Maximum case temperature Tc：167℉,75℃

·Height

1.2″ (30mm)

·Weight

0.6lbs

Lead Length

·White/Black

12 ″± 1″

·Red/Blue

7 ″± 1″
