ACT1S26RS120N


  • •Line Voltage: 120V 60Hz
    . •Rapid Start
    •Series Lamp Operation
    •Lamp End of Life Protection

Lamp Type Lamp No. Watts Min.Start Temp.(F/C) Vin(V) Iin(A) Pin(W) ATHD≤% PF≥ CF≤ BF BEF
CFQ26W/G24q-3 2 26 0/-18 120 0.43 26 150 0.50 1.7 0.88 3.26
FC8T9 1 22 0/-18 120 0.31 22 150 0.50 1.7 0.90 4.13


Performance

Safety

·Meets ANSI Standard C62.41-2002

·No PCB’s

·Meets FCC 18 CONSUMER Limits

·UL & cUL listed (Class P, Type 1 Outdoor)



·OCV 300V


·TYPE HL

Application

Physical Parameters

·Maximum Ambient Temperature:  <?xml:namespace prefix = "st1" ns = "urn:schemas-microsoft-com:office:smarttags" />131℉,55℃

·Length

3.9″ (98mm)

·Sound Rated:      A

·Width

2.0″ (51mm)

·Maximum case temperature Tc：167℉,75℃

·Height

1.2″ (30mm)

·Starting time:  0.5s < t <1s

·Weight

0.6 lbs

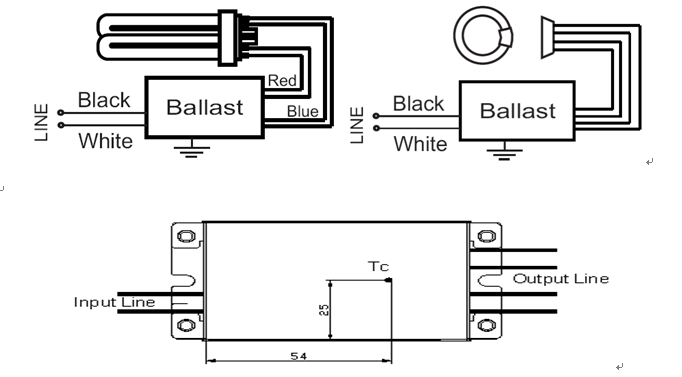

Lead Length





·White/Black

12 ″± 1″





·Red/Blue

12 ″± 1″
