| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CFQ26W | 2 | 26 | 0/-18 | 120 | 0.47 | 57 | 10 | 0.98 | 1.7 | 0.88 | 1.54 |
| CFQ26W | 2 | 26 | 0/-18 | 277 | 0.21 | 53 | 10 | 0.97 | 1.7 | 0.97 | 1.73 |

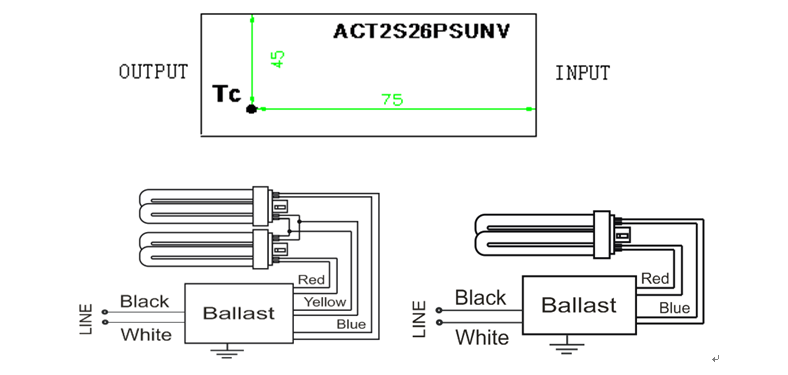

ACT2S26PSUNV-C
-
-
• Line Voltage:120-277V 50/60Hz
• Program Start
• Series Lamp Operation
• Active Power Factor Correction • Lamp End of Life Protection
• Type CC
|
 |
|||||||||||||||||||||||||||||
