| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F96T12/HO | 2 | 110 | -20/-29 | 120 | 1.54 | 185 | 10 | 0.98 | 1.7 | 0.88 | 0.48 |
| F96T12/HO | 2 | 110 | -20/-29 | 277 | 0.66 | 180 | 10 | 0.97 | 1.7 | 0.88 | 0.49 |

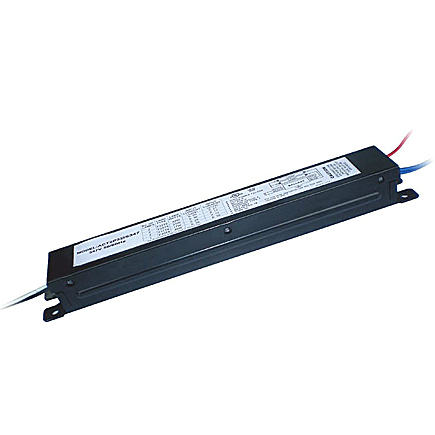

ACT2S110PSUNV
-
-
• Line Voltage:120-277V 50/60Hz
• Program Start

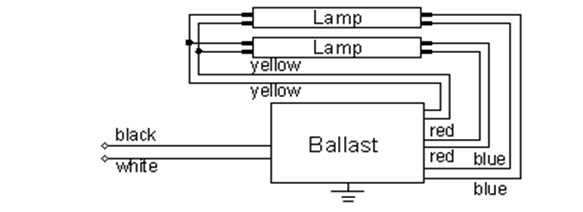

• Series Lamp Operation
• Active Power Factor Correction
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
