ACT2P59ISUNVL


  • • Line Voltage：120-277V 50/60Hz
    • Instant Start
    • Parallel Lamp Operation
    • Active Power Factor Correction

Lamp Type Lamp No. Watts Min.Start Temp.(F/C) Vin(V) Iin(A) Pin(W) ATHD≤% PF≥ CF≤ BF BEF
F96T8 2 59 32/0 120 0.82 98 10 0.98 1.7 0.75 0.77
F96T8 2 59 32/0 277 0.35 96 10 0.98 1.7 0.75 0.80

Performance

Safety

· Meets ANSI Standard C82.11-2002

· No PCB’s,   Type HL

· Meets ANSI Standard C62.41-2002

· UL&cUL listed (Class P, Type 1 Outdoor)

· Meets FCC 18 Non-Consumer Limits

· OCV 1000V

· Meets DOE energy conversation standards

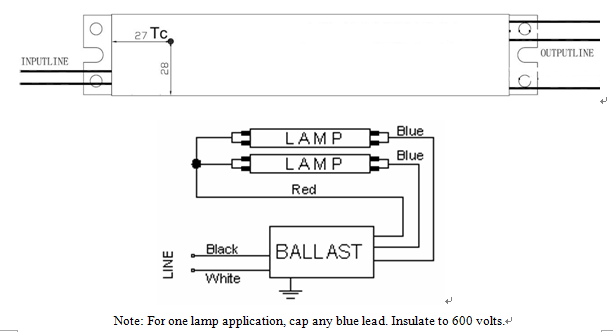

Application



Physical Parameters

· Remote Mounting:18 ft. max. Lead length, 18AWG

 Length

    9.5″

· Maximum Ambient Temperature:  131℉,55℃

 Width

    1.3″

· Sound Rated:      A

 Height

    1.1″

· Maximum case temperature Tc: 194℉,90℃

 Mounting

    8.9″



 Weight

    1.1 lbs

Lead Length





 White, Black,

     25″(±1″)





 Red

     79″(±1″)





 Blue

     46″(±1″)
