ACT2P32ISUNVHE


  • • Line Voltage：120-277V 50/60Hz
    • Instant Start
    • Parallel Lamp Operation
    • Active Power Factor Correction
Lamp Type Lamp No. Watts Min.Start Temp.(F/C) Vin(V) Iin(A) Pin(W) ATHD≤% PF≥ CF≤ BF BEF
F32T8 2 32 0/-18 120 0.62 74 10 0.98 1.7 1.18 1.59
F25T8 2 25 0/-18 120 0.45 54 10 0.98 1.7 1.20 2.20
F32T8 2 32 0/-18 277 0.27 73 10 0.98 1.7 1.18 1.61
F25T8 2 25 0/-18 277 0.20 54 10 0.98 1.7 1.20 2.22


Performance

Safety

· Meets ANSI Standard C82.11-2002

· No PCB’s,   Type HL

· Meets ANSI Standard C62.41-2002

· UL&cUL listed (Class P, Type 1 Outdoor)

· Meets FCC 18 Non-Consumer Limits (277v)

  Meets FCC 18 Consumer Limits (120v)

· OCV 600V

· Meets DOE energy conversation standards







Application



Physical Parameters

· Remote Mounting:18 ft. max. Lead length, 18AWG

 Length

    9.5″

· Maximum Ambient Temperature:  131℉,55℃

 Width

    1.3″

· Sound Rated:      A

 Height

    1.0″

· Maximum case temperature Tc: 194℉,90℃

 Mounting

    8.9″



 Weight

    1.1 lbs

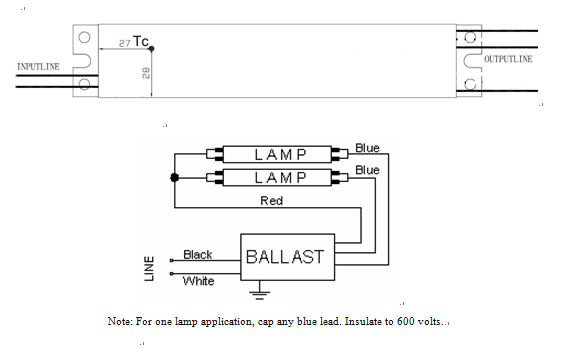

Lead Length





 White, Black,

     25″(±1″)





 Red

     46″(±1″)





 Blue

     31″(±1″)
