| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F32T8 | 4 | 32 | 0/-18 | 120 | 1.62 | 103 | 165 | 0.50 | 1.7 | 0.82 | 0.80 |
| F25T8 | 4 | 25 | 0/-18 | 120 | 1.25 | 86 | 170 | 0.50 | 1.7 | 0.86 | 1.00 |
| F32T8 | 3 | 32 | 0/-18 | 120 | 1.35 | 86 | 170 | 0.50 | 1.7 | 0.90 | 1.04 |
| F25T8 | 3 | 25 | 0/-18 | 120 | 1.12 | 77 | 175 | 0.50 | 1.7 | 1.00 | 1.31 |

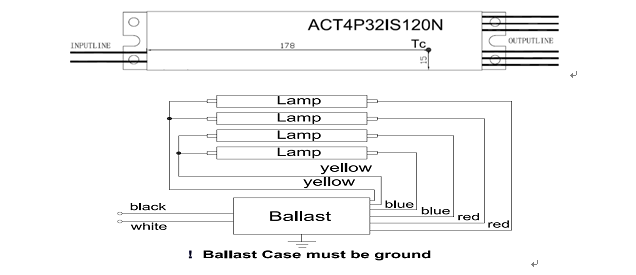

ACT4P32IS120N
-
-
•Line Voltage:120V/60Hz
•Instant Start
•Parallel Lamp Operation
•Normal Power Factor Correction
•BLE can meet DOE energy conservation standards
|
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
