ACT2P32ISUNVLE


  • • Line Voltage:120-277V 50/60Hz
    • Instant Start
    • Parallel Lamp Operation
    • Active Power Factor Correction
    • Meets DOE energy conservation standards

Lamp Type Lamp No. Watts Min.Start Temp.(F/C) Vin(V) Iin(A) Pin(W) ATHD≤% PF≥ CF≤ BF BEF
F32T8 2 32 0/-18 120 0.4 49 10 0.98 1.7 0.78 1.59
F25T8 2 25 0/-18 120 0.31 37 10 0.98 1.7 0.79 2.14
F32T8 1 32 0/-18 120 0.26 31 10 0.98 1.7 0.93 2.90
F25T8 1 25 0/-18 120 0.20 24 10 0.98 1.7 0.95 3.95
F32T8 2 32 0/-18 277 0.18 48 15 0.97 1.7 0.78 1.60
F25T8 2 25 0/-18 277 0.13 35 15 0.95 1.7 0.79 2.19
F32T8 1 32 0/-18 277 0.12 30 15 0.95 1.7 0.93 3.00
F25T8 1 25 0/-18 277 0.09 22 20 0.8 1.7 0.95 4.3

Performance

Safety

· Meets ANSI Standard C82.11-2002

· No PCB’s

· Meets ANSI Standard C62.41-2002

· UL&cUL listed (Class P, Type 1 Outdoor)

· Meets FCC 18 Non-consumer Limits  Class A

· OCV 600V



· Meets DOE energy conservation standards





Application

Physical Parameters

· Remote Mounting:18 ft. max. Lead length, 18AWG

 Length

    9.5″

· Maximum Ambient Temperature:  131℉,55℃

 Width

    1.3″

· Sound Rated:      A

 Height

    1.1″

· Maximum case temperature Tc：194℉,90℃

 Mounting

    8.9″



 Weight

    0.79  lbs

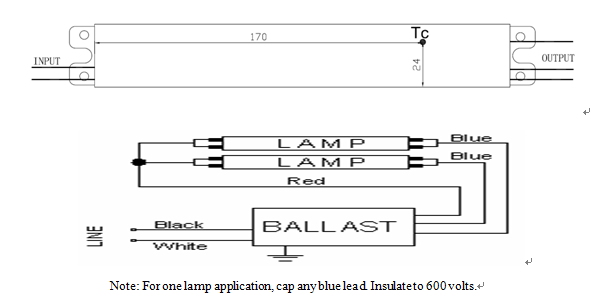

Lead Length





 White, Black

     25″(±1″)





 Red

     46″(±1″)





 Blue

     31″(±1″)
