| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F32T8 | 4 | 32 | 0/-18 | 120 | 0.93 | 110 | 20 | 0.98 | 1.7 | 0.88 | 0.79 |
| F25T8 | 4 | 25 | 0/-18 | 120 | 0.74 | 89 | 20 | 0.98 | 1.7 | 0.94 | 1.06 |
| F32T8 | 3 | 32 | 0/-18 | 120 | 0.79 | 94 | 20 | 0.98 | 1.7 | 1.00 | 1.06 |
| F25T8 | 3 | 25 | 0/-18 | 120 | 0.62 | 74 | 20 | 0.98 | 1.7 | 1.04 | 1.41 |

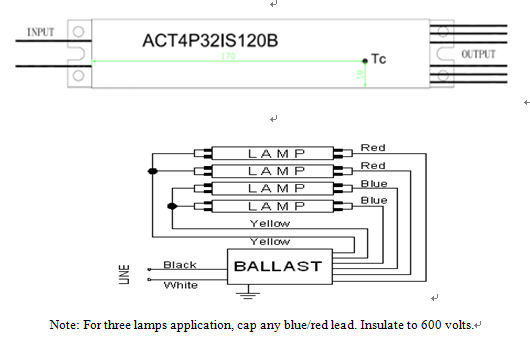

ACT4P32IS120B
-
-
•Line Voltage:120V/60Hz
•Instant Start
•Parallel Lamp Operation
•Active Power Factor Correction
|
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
