| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F32T8 | 3 | 32 | 0/-18 | 120 | 0.72 | 87 | 10 | 0.98 | 1.7 | 0.88 | 1.01 |
| F32T8 | 3 | 32 | 0/-18 | 277 | 0.31 | 85 | 10 | 0.98 | 1.7 | 0.88 | 1.03 |

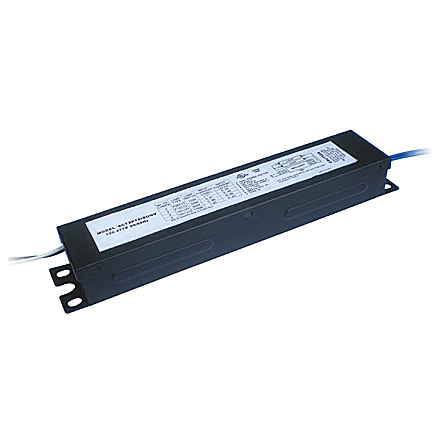

ACT3S32PSUNVE
-
-
• Line Voltage:120-277V 50/60Hz
• Program Start

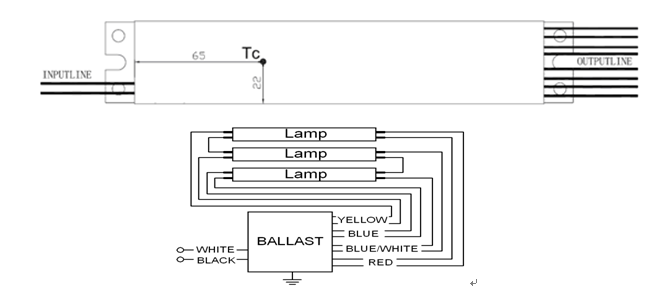

• Series Lamp Operation
• Type CC
• Active Power Factor Correction
• Relamping
|
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
