| Model | Vin (V) | Iin (A) | PF | Vout(V) | Iout(mA) | Pout(W) | Ta(℃) | Type TL / Tc(℃) | Eff |
|---|---|---|---|---|---|---|---|---|---|
| SLI 25-I500 120-277 W D1 P | 120-277 | 0.11-0.25 | 0.95 | 30-50 | 500 | 25 | -20~55 | 85/58 | 88% |
| SLI 35-I700 120-277 W D1 P | 120-277 | 0.14-0.34 | 0.95 | 30-50 | 700 | 35 | -20~55 | 85/58 | 88% |
| SLI 40-I1050 120-277 W D1 P | 120-277 | 0.17-0.40 | 0.95 | 21-38 | 1050 | 40 | -20~55 | 85/58 | 88% |
| SLI 50-I1400 120-277 W D1 P | 120-277 | 0.2-0.48 | 0.95 | 21-36 | 1400 | 50 | -20~55 | 85/58 | 88% |

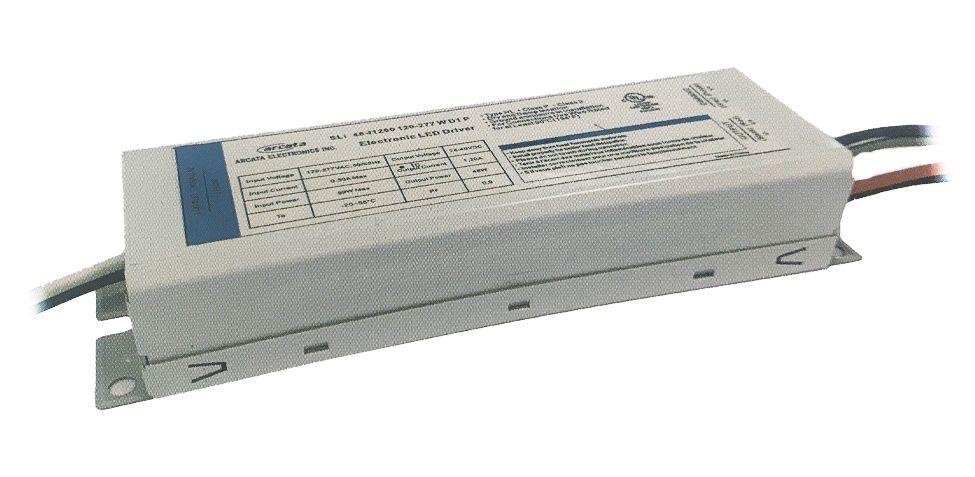

SLI 18-50 W D1 P Series
-
-
Input Voltage：120-277Vac
Input frequency is 50Hz-60Hz
0-10V Dimmable
High Power Factor,Low THD
Auto Recovery
Short circuit protection
Open circuit protection
UL/cUL,Type TL,UL Class 2,Class P
|
