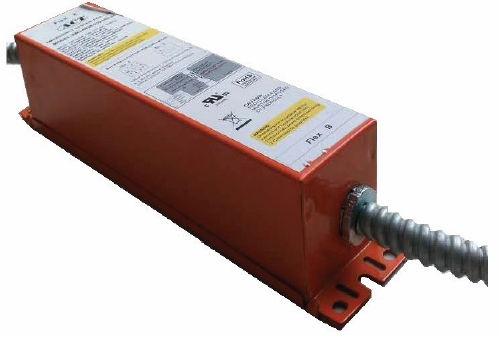

EMERGENCY LED DRIVER EMJ-0825-010/105-J2
1050mA output current
PRODUCT SPECIFICATION
Vin(V)
Iin (mA)
Iout(mA)
Vout(V)
Pout(W)
Tc (℃)
90-305
150
100-1050
11-56
25 MAX
70 MAX
PRODUCT DESCRIPTION
ELECTR ICAL DATA
Input voltage
90~305VAC 50/60Hz
Input current
150mA MAX.
Recharge power
8W MAX.
Standby power
0.4~0.8W
Red Lead
3A,90V
White/black Lead
100W MAX.
Output current
100~1050mA
Output voltage
11~56V
Output power
25W MAX
Output short protection
YES
Output open protection
YES
Over power protection
YES(output 100mA when over power)
Ambient temperature
10°C-50°C
Tc MAX
70 ℃
Time to light
0.3S from detection of emergency event
Emergency Time
90 min.@25W & 10~50°C
Recharge time required
48 Hours MAX
Battery type
LiFePO4 9.6VDC
Battery capacity available
6Ah
