| Item No. | PF | Vin(V) | Iin (A) | Vout(V) | Iout(mA) | Ta(℃) | Type TL(℃) | Eff |
|---|---|---|---|---|---|---|---|---|
| SL 60-U12 120-277 WC | 0.95 | 120-277 | 0.56-0.25 | 12 | 0-5000 | -20~50 | 85/60 | 82% |
| SL60-U12 120-277 WB | 0.95 | 120-277 | 0.56-0.25 | 12 | 0-5000 | -20~50 | 85/60 | 82% |
| SL 60-U12 120-277 WA | 0.95 | 120-277 | 0.56-0.25 | 12 | 0-5000 | -20~50 | 85/60 | 82% |

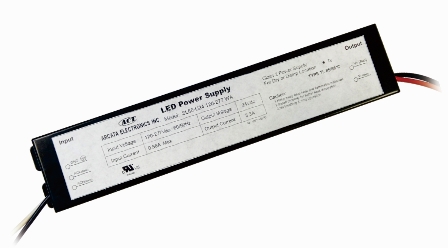

U12 Series
-
-
Line Voltage：120-277VAC 50/60 Hz
Constant Voltage Output
High Power Factor,Low THD
Auto Recovery
Short circuit protection
Over-current protection
Output voltage tolerance: ±3%
UL/cUL,Type TL
|
