| Model | Iout(mA) | Vout(V) | Max Pout(W) | Iin (A) | PF | Eff | Ta(℃) | Tc(℃) |
|---|---|---|---|---|---|---|---|---|
| ACT135-15LI-11/220-240 | 350 | 21-45 | 15 | 0.085 | 0.95 | 83% | -20~50 | 75 |
| ACT150-20LI-11/220-240 | 500 | 24-42 | 20 | 0.107 | 0.95 | 85% | -20~50 | 75 |
| ACT170-20LI-11/220-240 | 700 | 16-30 | 20 | 0.107 | 0.95 | 85% | -20~50 | 75 |
| ACT150-28LI-11/220-240 | 500 | 36-56 | 28 | 0.145 | 0.95 | 88% | -20~50 | 75 |
| ACT170-40LI-11/220-240 | 700 | 32-56 | 40 | 0.205 | 0.96 | 88% | -20~50 | 75 |
| ACT1050-50LI-11/220-240 | 1050 | 27-48 | 50 | 0.255 | 0.97 | 88% | -20~50 | 75 |

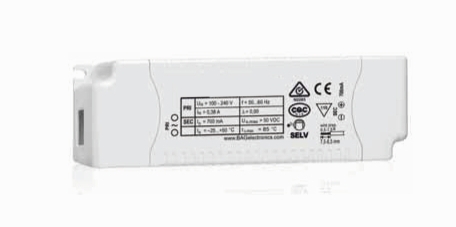

LI Series
-
Independent converter
Protection type Class II
Open circuit,short circuit,over load and over
Temperature protection
Auto restart after fault conditions removed
Inrush Current Max 24A,Life expectancy of 30kh at Tc≤75
|
