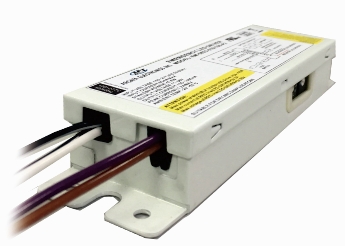

EMERGENCY LED DRIVER EM-0825-010/105-P2
1050mA max output current.
PRODUCT SPECIFICATION
Vin(V)
Iin (mA)
Iout(mA)
Vout(V)
Pout(W)
Tc (℃)
120-277
150 MAX
100-1050
11-56
25 MAX
70 MAX
PRODUCT DESCRIPTION
El ectrica l D ata
Input voltage
120-277VAC 50/60Hz
Input current
150mA MAX
Power fact
0.6
Recharge power
8W MAX
Standby power
<0.5W
Red Lead
3A,90V
White/black Lead
100W MAX
Output current
100~1050mA
Output voltage
11~56V
Output power
25W MAX
Output short protection
YES
Output open protection
YES
Ambient temperature
0℃~50℃
Ambient temperature 2
0℃~50℃ LiFePO4
Tc MAX
70 ℃
Time to light
0.3S from detection of emergency event
Recharge time required
24-48 hours (refer to battery chart)
Battery type
LiFePO4 9.6 VDC
Battery capacity available
0.9Ah-6Ah
C ase Di m e nsions :
Overall Length(L ):
5.89''±0.1''
Width(W ):
1.72''±0.1''
Height(H ):
1 .00''±0.1''
Mounting(M ):
5.30''±0.1''
Prog ram mable Switch:
Features:
Programmable Constant Current:
- P r e - s e t by factory
- Adjust it by yourself
Adjustable Output Current:
- 10 ranges
-50mA per scale
