| Model | Vin (V) | Iin (A) | PF | Vout(V) | Iout(mA) | Pout(W) | Ta(℃) | Type TL / Tc(℃) | Eff |
|---|---|---|---|---|---|---|---|---|---|
| SLP 60-I1200 120-277 W D1 S | 120-277 | 0.25-0.59 | 0.98 | 50 | 1200 | 60 | -20~55 | 89 | 88% |
| SLP 75-I1200 120-277 W D1 S | 120-277 | 0.32-0.74 | 0.98 | 36 | 2100 | 75 | -20~55 | 89 | 88% |
| SLP 96-I1200 120-277 W D1 S | 120-277 | 0.40-0.94 | 0.98 | 40 | 2400 | 96 | -20~55 | 89 | 88% |
| SLP XX-IXXX 120-277 W D1 S | 120-277 | 0.25-1.0 | 0.98 | 36-54 | 1200-2400 | 60-96 | -20~55 | 89 | 88% |

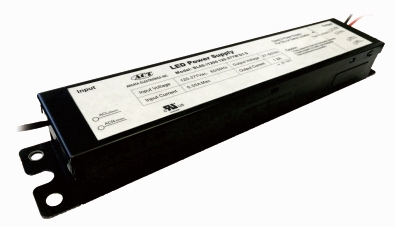

SLP 60-96 D1 Series
-
-
Input Voltage：120-277Vac
Input frequency is 50Hz-60Hz
0-10V Dimmable
High Power Factor,Low THD
Auto Recovery
Short circuit protection
Over-current protection
UL/cUL,Type TL,UL Class 2,Class P
|
