| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F28T5 | 2 | 28 | 20/-29 | 120 | 0.53 | 62 | 10 | 0.98 | 1.7 | 1.00 | 1.61 |
| F28T5 | 1 | 28 | 20/-29 | 120 | 0.29 | 31 | 10 | 0.98 | 1.7 | 1.05 | 3.39 |
| F28T5 | 2 | 28 | 20/-29 | 277 | 0.23 | 61 | 10 | 0.98 | 1.7 | 1.00 | 1.64 |
| F28T5 | 1 | 28 | 20/-29 | 277 | 0.12 | 31 | 10 | 0.98 | 1.7 | 1.05 | 3.39 |

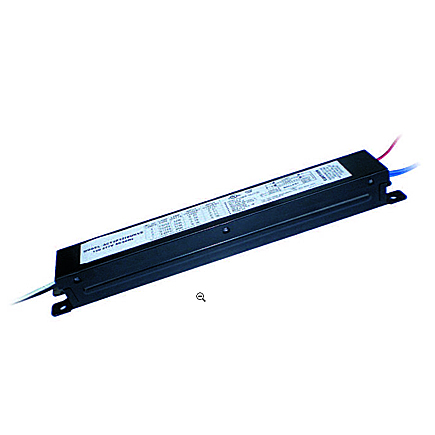

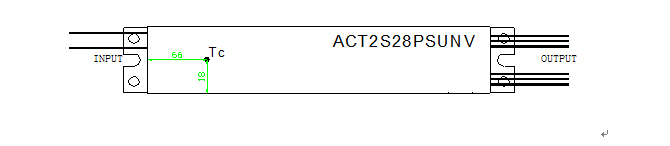

ACT2S28PSUNV
-
-
• Line Voltage:120-277V 50/60Hz
• Program Start

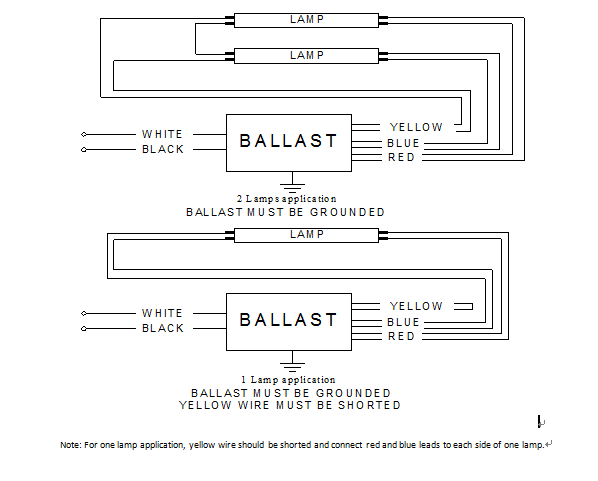

• Series Lamp Operation
• Active Power Factor Correction
• Lamp End of Life Protection
• Type CC
|
|
||||||||||||||||||||||||||||||||||||
