| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F54T5/HO | 2 | 54 | 20/-29 | 277 | 0.4 | 117 | 10 | 0.97 | 1.7 | 1.00 | 0.85 |
| F54T5/HO | 1 | 54 | 20/-29 | 120 | 54 | 62 | 10 | 0.98 | 1.7 | 1.03 | 1.66 |
| F54T5/HO | 2 | 54 | 20/-29 | 120 | 1.00 | 120 | 10 | 0.98 | 1.7 | 1.00 | 0.83 |
| F54T5/HO | 1 | 54 | 20/-29 | 277 | 0.2 | 62 | 20 | 0.9 | 1.7 | 1.03 | 1.66 |

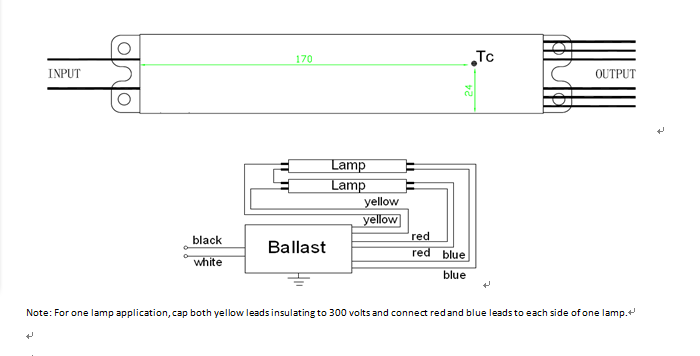

ACT2S54PSUNV
-
-
• Line Voltage:120-277V 50/60Hz
• Series Lamp Operation
• Lamp End of Life Protection
• Program Start
• Active Power Factor Correction
• Type CC
• BLE can meet DOE energy conservation standards
|
|
||||||||||||||||||||||||||||||||||||
