| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T5-E 35W | 1 | 35 | 10℃ | 220 | 0.17 | 38 | 10 | 0.98 | 1.7 | 1.00 | n/a |
| T5-E 28W | 1 | 28 | 10℃ | 220 | 0.14 | 30.5 | 10 | 0.98 | 1.7 | 1.00 | n/a |
| T5-E 21W | 1 | 21 | 10℃ | 220 | 0.11 | 23.2 | 10 | 0.98 | 1.7 | 1.00 | n/a |
| T5-E 14W | 1 | 14 | 10℃ | 220 | 0.07 | 16.3 | 10 | 0.98 | 1.7 | 1.00 | n/a |

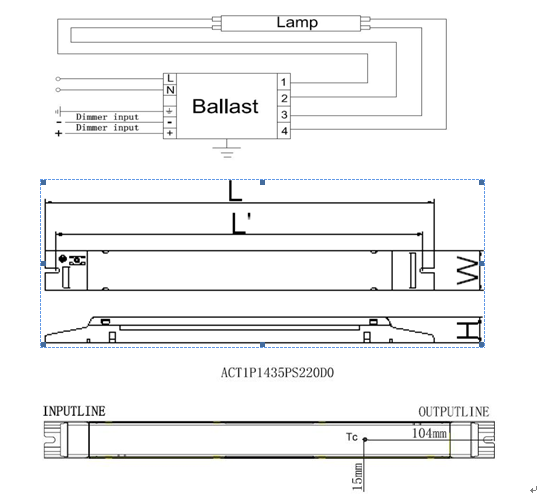

ACT1P1435PS220D0
-
-
Line Voltage：220~240Vac 50/60Hz
Safety Voltage: 198~264Vac 50/60Hz
EEI=A1
High Power Factor, Low THD Program Starting
Auto Reset after Lamp Replacement
Operating Frequency：40~100 kHz RoHS Compliance
Lamp switching ≥
|
 |
|||||||||||||||||||||||||||||||||
