| Lamp Type | Lamp No. | Watts | Min.Start Temp.(F/C) | Vin(V) | Iin(A) | Pin(W) | ATHD≤% | PF≥ | CF≤ | BF | BEF |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F54T5 | 2 | 54 | 14/-10 | 277 | 0.40 | 110 | 10 | 0.98 | 1.7 | 1.00 | 0.90 |
| F54T5 | 2 | 54 | 14/-10 | 120 | 0.94 | 112 | 10 | 0.98 | 1.7 | 1.00 | 0.90 |
| F54T5 | 2 | 54 | 14/-10 | 277 | 0.21 | 57 | 15 | 0.90 | 1.7 | 0.30 | 0.53 |
| F54T5 | 2 | 54 | 14/-10 | 120 | 0.48 | 58 | 15 | 0.90 | 1.7 | 0.30 | 0.52 |

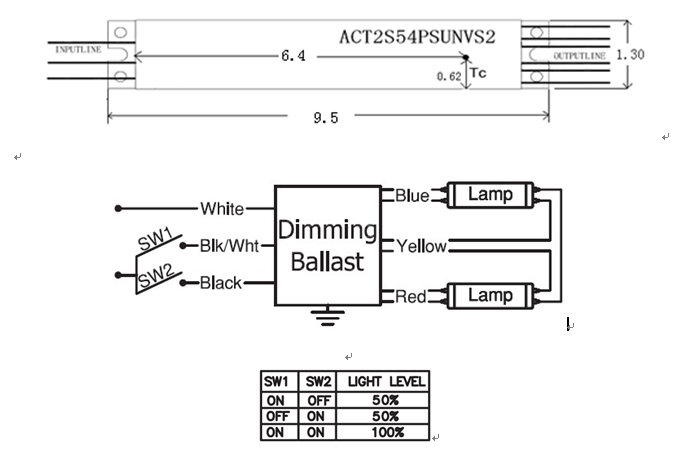

ACT2S54PSUNVS2
-
-
• Line Voltage:120-277V 50/60Hz
• Preheat Start
• Series Lamp Operation
• Active Power Factor Correction
• Lamp End of Lif
|
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
